To Create a New Document
- Navigate to “Projects”
- Select the project you want to open from the project list
- Click “Create” beside the “Documents” heading
- Select the appropriate document type from the dropdown
- Addendum
- Assessment
- BC Building Code Checklist
- Certificate of Payment
- Change Directive
- Change Order
- Contemplated Change Notice
- Design Check Sheet
- Drawing
- Field Review
- Independent Review
- Letter
- Memo
- Proposal
- Request for Information
- Risk Assessment
- Letter of Assurance
- Scope Change Request/Notice
- Site Instruction
Some document types (bolded below) can be populated from templates. See Templates for more information.
Available document types include:
Memo documents created here do not connect to the Memos module
- Complete all required and applicable fields
Some document types allow you to include attachments. When creating or editing one of these documents, scroll to the “Uploaded Files” section to select files that have already been uploaded to the project or attach previously created Stackd Documents. Selected files will be included in the generated PDF as clickable links.
- Click “Save Changes” to create a draft

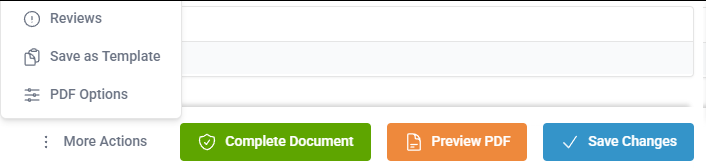

- From draft status, documents can be previewed (highlighted in yellow), saved as templates (where supported), sent for review, digitally signed, or completed
A draft watermark will populate over signatures for documents that have not yet been completed.

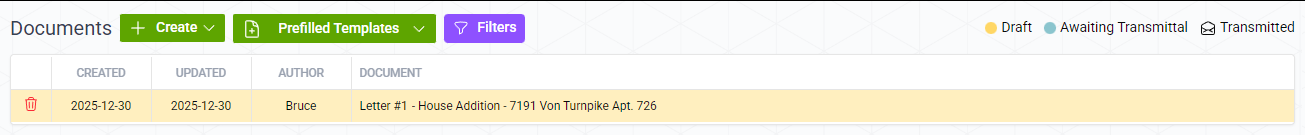

Document status updates automatically based on draft, completion (white), and transmittal state.
Refer to the legend in the top right above the table.

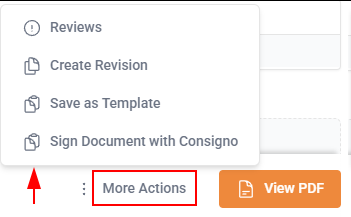

- Click on the document to open the document slide-over panel. Click “More Actions and select “Reviews”, “Create Revision”, “Save as Template”, or “Sign Document with ConsignO”
If you leave a document without saving, Stackd automatically creates recovery snapshots after approximately one minute of editing. These snapshots can be accessed at any time by navigating to More Actions → Recovery Snapshots.
Recovery snapshots are retained for up to one week and remain available under Archived Snapshots, even after the document is saved or closed.
Recovery snapshots are retained for up to one week and remain available under Archived Snapshots, even after the document is saved or closed.
Format Tables in the Editor
- Click inside the content area of the document
- To add a table, click the table icon in the toolbar, set the number of rows and columns, choose whether to include a header row, and click “Insert Table”
- Click inside a table cell, then click the table icon again to open the table options
- Under “Table”, choose “Left”, “Center”, or “Right” to align the table, or “Delete” to remove it
- Under “Columns” and “Rows”, add, delete, or set header rows and columns
- Under “Cells”, select “Merge” or “Split”, set the cell “Border”, “Background” colour, and “Padding”, or select “Vertical” to set the text vertically
- Use the alignment buttons on the right of the toolbar to align text, images, and other elements
